Define text at conductor

QElectroTech allows defining and displaying information text at each conductor.

Note

Only multiline conductors allow text definition.

To define the conductor text:

1. Select the conductor which should be edited.

2. Display conductor properties PopUp window.

3. Go to multiline section from Type tab.

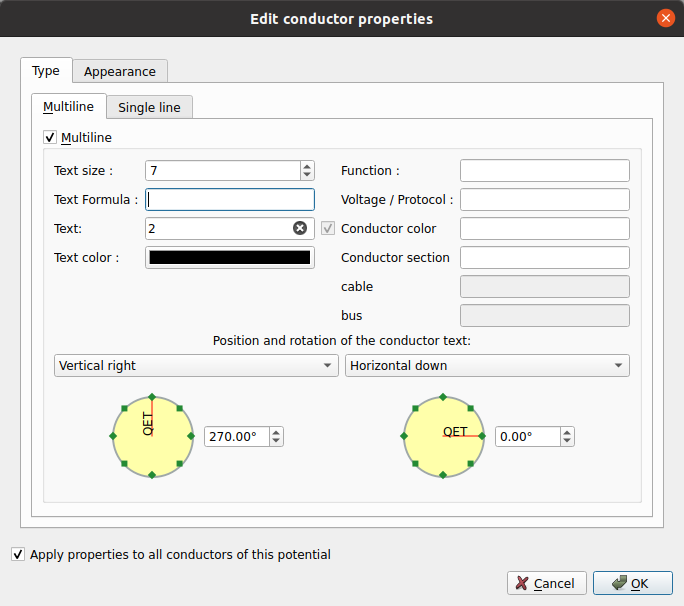

   Figure: QElectroTech multiline conductor text section

4. Choose the desired parametes for text positioning, text content or formula, text size, etc.

5. Click the check buttom Apply properties to all conductor of this potential if the changes should be applied for all conductor with common initial or end terminal.

6. Press OK button to save and apply the property changes.

See also

For more information about multiline properties, refer to conductor type properties section.

For more information about automatic text definition during conductor creation, refer to project folio properties section.
